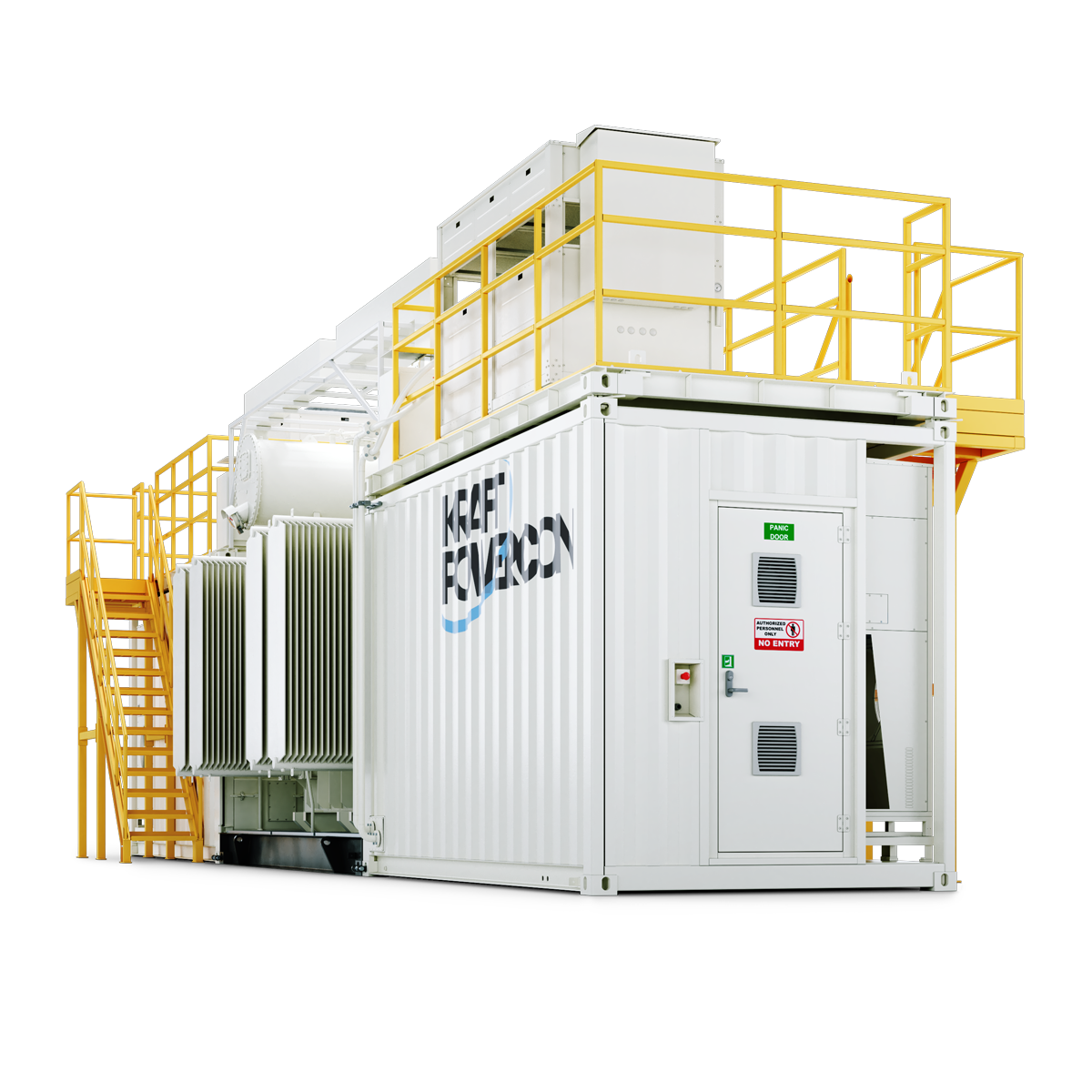

Containerized, Grid-Compliant DC Power System for Hydrogen Electrolysis

Electrolysis is a process that relies on stable and pure DC current to split water into hydrogen and oxygen. Even small fluctuations in current or voltage ripple can affect the electrochemical reaction rate, leading to reduced gas purity, increased stack wear, and inefficient hydrogen yield. When multiple electrolyzer stacks operate simultaneously — especially in multi-megawatt hydrogen plants — the demand on the AC grid becomes highly dynamic. Poor power quality can cause flicker, harmonics, and unbalanced loading, which not only impacts the electrolyzer itself but can also lead to non-compliance with grid regulations and penalties from grid operators. That’s why KraftPowercon’s H2Kraft™ power platform is engineered with active front-end converters, advanced PWM control, and digital harmonic compensation. These features ensure that both the grid side and the DC process side remain stable, synchronized, and efficient. Good power quality isn’t just an operational advantage — it’s a prerequisite for sustainable, large-scale hydrogen production that meets renewable integration and grid code standards worldwide.

Harmonics are unwanted high-frequency components that distort the fundamental AC waveform. In hydrogen electrolysis facilities, harmonics can originate from rectifiers, inverters, and variable-speed drives within auxiliary systems. High harmonic levels increase cable and transformer losses, generate excessive heat, and interfere with measurement and control equipment. In severe cases, they cause resonance effects that amplify voltage distortion and destabilize the grid. Electrolyzer plants above 1 MW typically need to comply with IEEE 519 or IEC 61000-3-12 harmonic limits, and failure to do so may lead to connection restrictions or derating by the utility. H2Kraft™ uses a fully controlled IGBT-based active front end with THD below 3%, compared to 8–12% for conventional diode or thyristor rectifiers. Additionally, KraftPowercon designs include active harmonic filters and digital current shaping algorithms that dynamically compensate for varying loads. The result is a clean current draw from the grid, reduced transformer stress, and a future-proof foundation for high-capacity hydrogen production facilities.

An active front-end (AFE) rectifier is more than just a power converter — it’s a smart interface between the grid and the electrolyzer. Traditional thyristor rectifiers draw current in pulses, generating reactive power and harmonic distortion. In contrast, an AFE uses IGBTs with high-frequency switching to draw near-sinusoidal current at unity power factor, ensuring that the plant meets grid code requirements for harmonics, flicker, and reactive power compensation. For hydrogen plants powered by renewables, where voltage and frequency fluctuate, AFE technology provides fast dynamic control, ride-through capability, and bidirectional reactive power support. It allows the electrolyzer system to act as a stabilizing load rather than a disturbance — a crucial factor when grid operators impose strict interconnection rules. KraftPowercon’s AFE design also includes soft-start functionality, low inrush current, and seamless synchronization with hybrid energy sources, ensuring continuous operation even under grid events.

The purity and durability of an electrolyzer stack depend heavily on DC ripple performance. Ripple — small periodic deviations superimposed on the DC output — can cause non-uniform gas evolution, temperature hotspots, and accelerated membrane degradation. In sensitive PEM electrolyzers, even ripple levels above 2–3 % can reduce efficiency by several percentage points and shorten stack life by up to 20–30%. Unstable DC power also stresses power electronics within the electrolyzer’s control unit. H2Kraft™ employs multi-phase rectification, digital current control loops, and dedicated output filtering to achieve < 1 % peak-to-peak ripple across the full load range. This high-quality DC output ensures smoother electrochemical reactions, improved gas purity, and consistent hydrogen production over extended operating hours. By maintaining current stability, KraftPowercon helps operators maximize electrolyzer lifetime while minimizing costly stack replacements — a key driver for lowering the levelized cost of hydrogen (LCOH).

As hydrogen projects scale up, they increasingly fall under the same scrutiny as large industrial and renewable installations. The most relevant standards include: • IEEE 519 — Defines acceptable limits for voltage and current harmonic distortion. • IEC 61000-3-12 — Specifies harmonic emission limits for equipment connected to public low-voltage networks. • EN 61000-4-7/-13 — Details testing and measurement procedures for harmonic currents and interharmonics. • Local grid codes (e.g., German BDEW, UK G99, Nordic NC RfG) — Specify dynamic voltage support, frequency response, and reactive power control. Compliance with these standards is not optional. Many utilities now require harmonic compliance verification and power factor guarantees before granting grid connection. H2Kraft™ systems are engineered to comply by design, combining active harmonic control, EMC shielding, and programmable reactive power compensation. This ensures that hydrogen plants can connect seamlessly to utility grids, renewable clusters, or microgrid environments anywhere in the world.

Large hydrogen facilities often operate dozens of electrolyzer modules in parallel, each with its own power converter. Without coordinated control, these converters can create harmonic interactions or inrush currents that destabilize the grid. KraftPowercon’s modular H2Kraft™ architecture features synchronized phase management and digital current sharing, ensuring that all rectifier units operate coherently with balanced loads. This architecture also enables redundancy and hot-swap capability — if one unit is offline for maintenance, others automatically compensate without disrupting operation. Moreover, built-in communication via Modbus TCP/IP and Ethernet allows seamless integration into plant-wide energy management systems. The result is a hydrogen facility that behaves as a single, stable electrical entity, maintaining high power factor and harmonic compliance even at multi-megawatt scale.

Passive filters use fixed inductors and capacitors to block specific harmonic frequencies. While effective in small, constant-load applications, they lack adaptability — harmonic levels shift as operating conditions change. Active filters, by contrast, continuously monitor the current waveform and inject an equal-but-opposite compensation current in real time. This adaptive approach provides broader harmonic suppression, lower distortion, and improved stability under variable load or renewable-fed power. In hydrogen applications where load patterns fluctuate due to dynamic electrolyzer control or renewable intermittency, active filters are essential. They protect transformers, reduce heating, and maintain compliance without manual retuning. KraftPowercon’s integrated filter designs are fully digital, providing real-time harmonic cancellation and diagnostics, which are invaluable for predictive maintenance and long-term power quality assurance.

The power supply is one of the largest single cost drivers in an electrolyzer system — typically representing 25–35 % of total CAPEX and consuming up to 80 % of total energy input. Every improvement in conversion efficiency translates directly into lower operational expenses. A 1 % increase in rectifier efficiency can save thousands of euros annually per megawatt of installed capacity. KraftPowercon’s converters operate at up to 97 % efficiency, with optimized switching frequency to minimize losses while keeping output stable. Advanced thermal design ensures minimal cooling demand, further improving overall system energy balance. In addition, predictive diagnostic tools monitor temperature, ripple, and harmonic profiles to prevent unplanned downtime — extending service intervals and ensuring long-term cost control.

Modern hydrogen production often operates alongside solar farms, wind parks, or battery energy storage systems, where power availability and quality fluctuate. H2Kraft™ systems are designed for fast dynamic response and grid-forming capability, automatically adjusting to changes in voltage, frequency, or load without compromising DC stability. The active front end enables reactive power compensation and frequency support, making the hydrogen system a grid-stabilizing asset rather than a passive load. In hybrid microgrids, H2Kraft™ converters communicate with energy management systems (EMS) to coordinate power flows and maintain optimal efficiency. This capability allows operators to maximize renewable utilization, minimize curtailment, and maintain continuous hydrogen production even during renewable dips or grid disturbances.

Grid compliance and harmonic management can be complex — every site has its own electrical signature. KraftPowercon provides complete engineering support, including power quality simulations, harmonic studies, and load flow analysis tailored to each project. Our experts assist EPCs and OEMs from the early design stage, ensuring that the power system architecture, filter sizing, and control strategy meet both performance and regulatory criteria. Beyond design, KraftPowercon offers commissioning, training, and long-term service programs, including remote diagnostics and firmware updates. This end-to-end approach guarantees not only compliant installation but also sustained performance and measurable return on investment throughout the lifecycle of your hydrogen plant.
